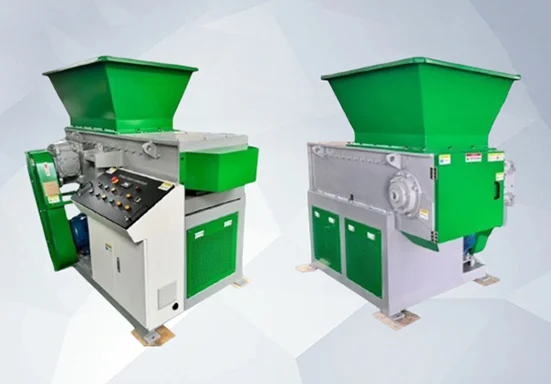

Single shaft shredders offer a controlled and efficient solution for processing solid, bulky waste materials. Equipped with a rugged rotor, replaceable blades, and a hydraulic pusher system, they are particularly effective for reducing plastic pipes, sheets, film, and wooden components into uniform fragments.
Operating at low speeds with high torque, these machines deliver high throughput with minimal noise and vibration. Their ability to integrate screens for output size control, along with optional discharge and feeding systems, makes them indispensable in plastic recycling and industrial waste management plants.
| Model | S3-600 |
|---|---|
| Can Shred (Material) | Plastic |
| Feeding Size | 600mm x 1000mm Side Feeding Hopper |
| Chamber Size | 650mm x 600mm (L x W) |
| Rotor Diameter | 280mm |
| Rotary Speed for Blade | 80rpm |
| Blade Material | SKD11 |
| Hardness of Blade | HRC55-60 |
| Qty of Rotary Blade | 26 Nos. (welded rotor) |
| Qty of Fixed Blade | 2 Nos. |
| Wall Thickness of Chamber | 20mm |
| Drive Motor Power | 30.0 HP / 22.065 kW |
| Capacity | 300 - 500 kgs/hr |
| Weight of Machine | 2300kgs Approx. |
| Motor Protection Standard | TP44 |
| Noise | < 75 db |
