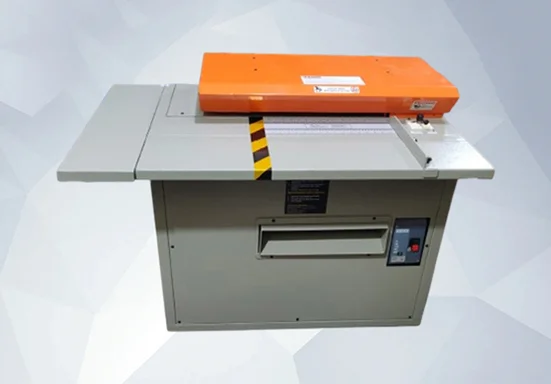

Cardboard perforators transform used corrugated boxes into eco-friendly, cushioning packaging material, offering an alternative to foam and bubble wrap. This sustainable solution reduces packaging costs and contributes to waste minimization strategies.
Part of our Eco series, these machines feature direct start/stop operation without 24V DC control circuits. Their compact footprint, user-friendly design, and ability to repurpose waste cardboard on-site make them ideal for warehouses, logistics centres, and e-commerce fulfilment hubs.
| Feed Opening: | 525mm |
|---|---|
| Motor HP/Kw: | 5.0 HP / 3.75 kW |
| Voltage: | 415 V / 50 Hz / 3 Phase / (3P + N + E) |
| Through Put: | 200 - 250 Kgs Per Hour |
| Mechanical Speed: | 10.1 meters per minute |
| Production Output: | Continuous |
| Feeding Mechanism: | Manual Feeding |
| Machine Weight: | 480kgs (Approx.) |
| Noise Level: | 65dB |
| Safety: | 360 Degree Guarding On All Moving Parts |
| Bearing: | SKF |
|---|---|
| Motor: | Hindustan |
| Gearbox: | Power Build |
| Gears: | C55Mn75 Alloy Steel Hardened |
| Sprocket: | Albro |
| Chain: | Diamond |
| Outer Frame: | 16 GA Fabricated Duly Powder Coated |
