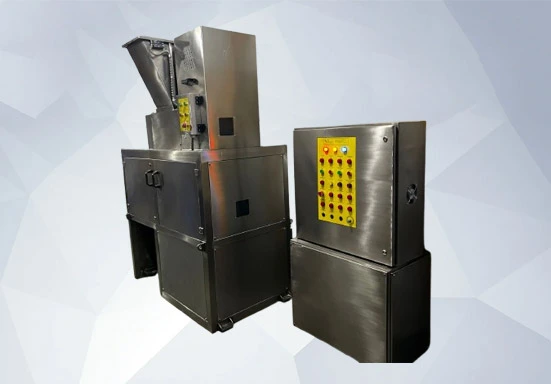

Liquid Pouch Squeezing & Recovery Machine

Model: DS4005 SS316  |  Contact & Non-Contact Parts: SS316  |  Panel: MS Powder Coated (default)

Shred Maxx is the leading manufacturer of high-quality Liquid Pouch Squeezing & Recovery Machines (Model DS4005). This machine is specifically built to recover liquid content trapped inside sealed pouches and sachets — such as shampoo, hair dye, juice, puree, and other viscous products — by squeezing the pouch to extract the liquid and separating it cleanly from the wrapper material.

Our product recovery machine prevents product wastage, keeping the liquid and packaging separate for proper disposal, recycling, or reuse. It is extremely valuable for pharmaceutical, FMCG, and cosmetic manufacturers dealing with rejected, off-spec, or expired sealed batches.

By integrating the functions of compression and separation into one efficient and compact unit, this system enables businesses to convert challenging waste streams into valuable reusable raw materials safely and at low operational costs. The internal design ensures a smooth, controlled flow of materials even under continuous load, maintaining stable operation and a long service life.

Applications:

  • Recovers liquid content trapped inside sealed pouches and sachets (shampoo, hair dye, juice, puree, etc.).
  • Used in agricultural, food processing, FMCG, and organic waste recycling units.
  • Processes rejected, off-spec, or expired sealed batches for pharma and cosmetic manufacturers.

Benefits:

  • Prevents product wastage by recovering 60% to 95% of trapped liquid depending on viscosity.
  • Keeps liquid and packaging materials separate for proper disposal, recycling, or reuse.
  • Maintains clean operations and improves hygiene in waste handling areas by avoiding manual separation.

Technical Specifications

Feed Width 400 mm
Main Motor 5 HP / 3.68 kW 415V A/C with Gearbox
Squeezing Unit 7.5 HP / 5.52 kW A/C Motor
Drive (Total HP) 7.5 HP / 5.52 kW
Motor Make Siemens
Control Panel Control Circuit 24V DC with Stop-Start Interlocking with Loto Switch & Indicator Lamps
Safety 360° Safety
Capacity 100–120 Kg/Hr. (Depending on feeding speed & viscosity of liquid)
Note Squeezing & Product Recovery: 60% to 95% depending on material viscosity

Materials & Construction

Cutter Grade SS440
Contact Parts SS316
Non-Contact Parts SS316
Collection Tray/Bin SS304 collection vessel 30L – 2 nos
Can Shred & Squeeze Yes – Liquid Pouch
Panel Enclosure SS304 (standard)

Optional Accessories

Feeding Platform — MS Rs. 35,000/-
Feeding Platform — SS304 Rs. 85,000/-

Packing & Logistics

Loose Packing Charges Rs. 8,000/-
Wooden Crate Packing Rs. 46,000/- (if required)
Freight Charges Extra at actuals (To Pay Basis)

Terms & Conditions

GST Number 27AABPK3989M1Z3
HSN Code 84411010
Payment Terms 50% Advance with Order + 50% Against Proforma Invoice Before Delivery
Delivery 10 to 12 Weeks from date of receipt of formal order
Warranty 1 Year Standard Warranty on Manufacturing Defects
