At Shred Maxx, we design and manufacture Lami Tube Shredder Machines that are made for the effective size reduction of laminated plastic tubes generated by toothpaste, cosmetic, pharmaceutical, and FMCG packaging industries. As a trusted Plastic Recycling Shredder Machine manufacturer in India, we focus on delivering efficient and scalable shredding solutions that support sustainable plastic waste management and circular recycling operations.
Laminated tubes are difficult to recycle because they’re made from several layers of different materials — usually multiple types of plastic combined with a thin aluminum barrier — all combined together in a single structure. These materials are tough to cut and often cause frequent blockages in conventional shredders. Our Lami Tube Shredder Machines are specifically designed to overcome these challenges by maintaining consistent cutting action and uniform output size, even during continuous high-load operation.

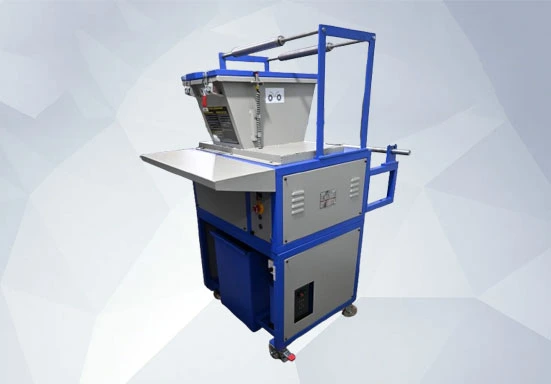

The Lami Tube Shredder Machine from Shred Maxx is built on proven double shaft shredder technology, optimized for shredding flexible, layered, and composite plastic waste. As an experienced Double Shaft Shredder Manufacturer, we make machines that deliver high rotational strength at slow operating speeds, allowing the shredder machine to tear laminated tubes rather than crushing or melting them.
| Feed Opening | 300mm |
|---|---|
| Motor HP/Kw | 2.0 HP / 1.5 Kw |
| Voltage | 415 V / 50 Hz / 3 Phase / (3P + N + E) |
| Through Put | 100 - 150 Kgs Per Hour |
| Output Size | Uneven Shred Size |
| Feeding Mechanism | Manually Feeding |
| Machine Weight | 345kgs (Approx.) |
| Shredder Type | Dual Shaft Cross Cut Shredder |
|---|---|
| Cutting Head Opening | 300mm |
| Cutter Diameter | 155mm |
| Cutter Thickness | Thickness Of 12mm / 24mm |
| Note | Cutter Thickness Depends On Product/Material To Shred and Required Output |
| Cutter | C45Mn75 Grade Cutter |
| Shaft | C55Mn75 Alloy Steel - 2nos w/ Hex Machining @60mm A/F For Firm Grip On Cutters For Zero Slippage |
| Gearbox | Bonvario |
| Gear | C55Mn75 Hardened With Spline For Zero Slippage |
| Motor | Hindustan / Siemens / Crompton |
| Machine Frame | 40mm x 40mm Square Pipe Of Mild Steel Duly Powder Coated |
