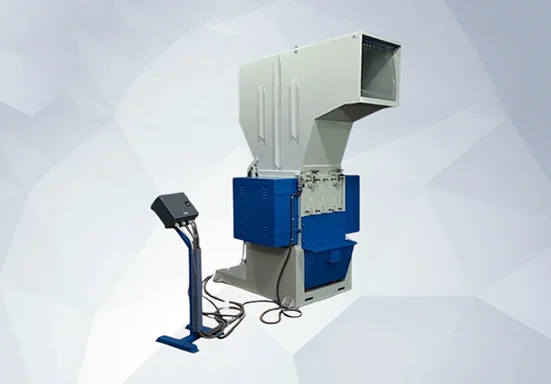

The S3 Series Single Shaft Shredder is suitable for recycling wide range of materials. It is an ideal machine for plastic, paper, fiber, organic waste and a wide variety of materials.
As per our customers’ requirements, such as the input size of the material, capacity and the final output size etc., we could work out a suitable proposal for our clients. After being shredded by the machine, the output material could be used directly or go into the next step of size reduction.
With the function of control system, It is possible to control automatically start, stop, automatic reverse sensors to protect the machine against over loading and jamming.
| Throat Size: | 25” x 25” |
|---|---|
| No. of Blades: | 3 Rotating and 2 Fixed |
| Screen Size: | 12mm-15mm Standard / As Per Customer Requirement |
| Motor HP/Kw: | 25.0 HP / 18.75 kW |
| Voltage: | 415 V / 50 Hz / 3 Phase / (3P + N + E) |
| Through Put: | 400 - 600 Kgs Per Hour (For 15mm Screen Size) |
| Note: | Through Put will vary with respect to feeding speed, material, and its bulk density |
| Output Size: | As per Screen Size |
| Feeding Mechanism: | Manually Feeding |
| Machine Weight: | 2137kgs (Approx.) |
| Blade Material: | Hardened WPS / HCHCR |
|---|---|
| Body Plate Thickness: | 48mm |
| Bearing: | 6320 |
| Machine Body / Frame: | Painted Mild Steel |
| V Belt: | ‘C’ Section |
| Hopper: | 5mm thick Painted Mild Steel |
| Guard Cover: | 16 swg Mild Steel Sheet Metal Duly Painted |
| Fly Wheel / Pulley: | Cast Iron |
| Fly Wheel Outer Diameter: | 460mm |
| Fly Wheel Thickness: | 140mm |
| Rotor Diameter: | 524mm |
| Motor: | Hindustan |
| Limit Switch: | Avon |
| Starter: | Star Delta |
