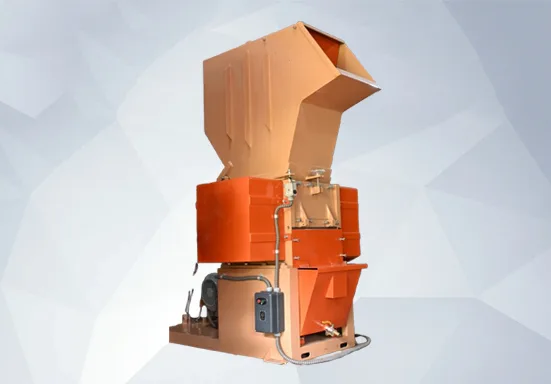

without cyclone blower

Plastic Waste Shredder Machine

Shred Maxx is the leading Plastic Crusher Machine manufacturer in India. Plastic Crusher Machine is also known as Plastic Waste Shredder Machine. Our machines are high-performance machines that are designed to cut various types of plastic wastes into manageable, recyclable quantities. Our shredders are durable and that is why they are useful in minimizing plastic quantity, enhance the efficiency of the waste management process, and contribute to recycling sustainability. Our shredding machines offer steady production on shredding of post-industrial plastic scraps to shredding post-consumer waste at the lowest possible downtime.

Constructed by a hardened steel construction and hardened blades that have been precisely cut, Our plastic waste shredders can easily cut thick, rigid and bulky plastic materials. The machines are made in such a way that they provide uniform shredding as well as low power consumption and high safety in operation. The high cutting technology provides a smooth operation, less noise and longer life of the blade hence, the system is affordable in the long-run.

Being the leading Plastic Waste Shredder Machine manufacturer in India, Our Plastic Waste Shredder Machines are also very popular in recycling sites, manufacturing industries, municipal waste sites, and plastic manufacturing industries. We provide shredding solutions that convert waste into useful reusable products - at an efficient, safe and sustainable rate.

Application:

  • Processing rejected plastic parts from quality control lines
  • Used in Reducing bulky plastic waste into smaller, manageable pieces
  • Used in Shredding post-consumer plastic waste such as bottles, containers, and packaging

Benefits:

  • Increases operational efficiency
  • Lowers waste disposal
  • Strong, wear-resistant blades ensure long-lasting performance

Technical Specification

Throat Size: 16” x 16”
No. of Blades: 3 Rotating and 2 Fixed
Screen Size: 12mm-15mm Standard / As Per Customer Requirement
Motor HP/Kw: 10.0 HP / 7.5 kW
Voltage: 415 V / 50 Hz / 3 Phase / (3P + N + E)
Through Put: 150 - 250 Kgs Per Hour (For 15mm Screen Size)
Note: Through Put will vary with respect to feeding speed, material, and its bulk density
Output Size: As Per Screen Size
Feeding Mechanism: Manually Feeding
Machine Weight: 950kgs (Approx.)

Mechanical Details

Blade Material: Hardened WPS / HCHCR
Body Plate Thickness: 36mm
Bearing: 6313
Machine Body / Frame: Painted Mild Steel
V Belt: ‘C’ Section
Hopper: 4mm thick Painted Mild Steel
Guard Cover: 16 swg Mild Steel Sheet Metal Duly Painted
Fly Wheel / Pulley: Cast Iron
Fly Wheel Outer Diameter: 325mm
Rotor Diameter: 350mm
Motor: Hindustan
Limit Switch: Avon
