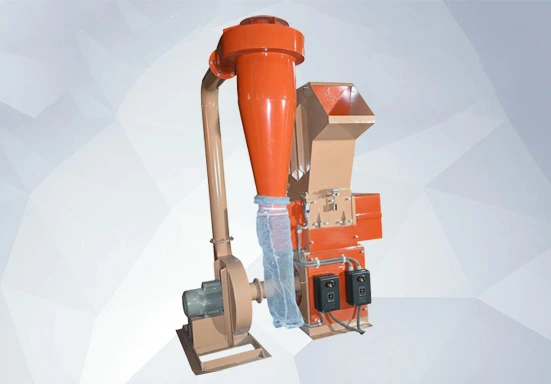

Shred Maxx is a reputed PET Bottle Grinding machine manufacturer in India and it is a manufacturer of high-performance robust machines that will address the increasing needs of plastic recycling and sustainable waste management. The specially designed PET bottle grinding machines are designed to recycle post-consumer bottles of PET, and convert the bulky plastic waste into uniform, high quality flakes that can be recycled and re-processed as before.
As a product in the plastic recycling plants, bottling, municipal waste management, and plastic reprocessing industries, Our PET bottle grinders are designed to provide high-quality service under a large spectrum of operating environments. The machines can accommodate the different sizes and thicknesses of the bottles and give the same quality of output and throughput.
Constructed using the robust manufactured frames, sharp cutting tools and engineered parts, our PET Bottle Grinding Machines are intended to be used as a constant industrial process. The combination of complex cutting technology, which makes size reduction efficient, in the use of a small amount of power, and the ruggedness of the construction reduces vibration and wear. This will lead to low operating expenses, lower operating maintenance as well as an increase in the machine life that will make our PET Bottle Grinding Machines an affordable and reliable solution to long term recycling operations.
| Throat Size | 16” x 16” |
|---|---|
| No. of Blades | 3 Rotating and 2 Fixed |
| Screen Size | 12mm-15mm Standard / As Per Customer Requirement |
| Motor HP/Kw | 10.0 HP / 7.5 kW |
| Blower HP/Kw | 2.0 HP / 1.5 kW |
| Blower Type | Cyclone Blower |
| Voltage | 415 V / 50 Hz / 3 Phase / (3P + N + E) |
| Through Put | 90 Kgs Per Hour (For 15mm Screen Size, For Light Weight Material) |
| Note | Through Put will vary with respect to material and its bulk density |
| Output Size | Uneven Shred Size |
| Feeding Mechanism | Manually Feeding |
| Machine Weight | 1076kgs (Approx.) |
| Blade Material | Hardened WPS / HCHCR |
|---|---|
| Body Plate Thickness | 36mm |
| Bearing | 6313 |
| Machine Body / Frame | Painted Mild Steel |
| V Belt | ‘C’ Section |
| Hopper | 4mm thick Painted Mild Steel |
| Guard Cover | 16 swg Mild Steel Sheet Metal Duly Painted |
| Fly Wheel / Pulley | Cast Iron |
| Fly Wheel Outer Diameter | 325mm |
| Rotor Diameter | 350mm |
| Motor | Hindustan |
| Limit Switch | Avon |
