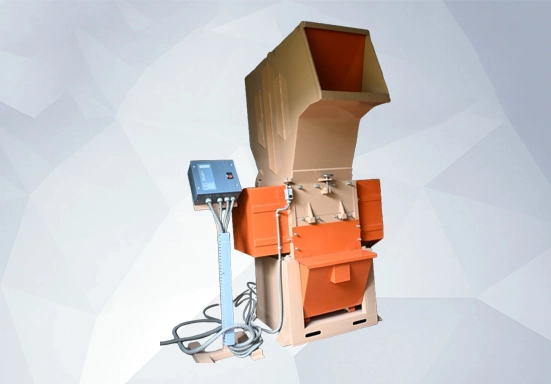

Shred Maxx stands as a trusted HDPE Bottle Grinding Machines manufacturer in India. We manufacture high performance HDPE Bottle Grinding Machines to provide accurate and efficient reduction of rigid HDPE bottle size produced in the packaging, chemical, pharmaceutical, dairy, and FMCG sectors. These machines are capable of processing large quantities of post-consumer and post-industrial plastic waste and converting bulky bottles of HDPE into uniformly sized regrind material, which is optimal for recycling and further processing of the material.
Our HDPE bottle grinding machines are manufactured with heavy-duty steel components that have hardened alloy cutters and precision-balanced rotors to provide smooth, stable operation even when used under continuous load. The well-designed cutting chamber enables it to cut milk bottles, detergent containers, lubricant cans, oil bottles, and other hard HDPE packages with a lot of efficiency without jamming and wearing out. Innovative blade design would provide clean and uniform flakes with the minimum effect of dust, vibration and noise, which leads to a higher safety of operation and longer service life of the machine.
Our HDPE Bottle Grinding Machines are offered in various sizes, variations of motor power, and throughput capacities, to serve the various industrial needs. Some of the features that can be added to machines to increase productivity are soundproof enclosures, conveyor- fed loading systems, magnetic separators, and dust collection units. Our machines are designed with high consideration to the safety of the operators, energy-efficient and easy to maintain and offer long-term reliability with low downtime. Our grinding machine are crucial in the management of plastic waste in a sustainable approach as it allows a high level of recycling and reuse of HDPE materials in industrial use.
| Throat Size: | 20” x 20” |
|---|---|
| No. of Blades: | 3 Rotating and 2 Fixed |
| Screen Size: | 12mm-15mm Standard / As Per Customer Requirement |
| Motor HP/Kw: | 15.0 HP / 11.25 kW |
| Voltage: | 415 V / 50 Hz / 3 Phase / (3P + N + E) |
| Through Put: | 250 - 400 Kgs Per Hour (For 15mm Screen Size) |
| Note: | Through Put will vary with respect to feeding speed, material, and its bulk density |
| Output Size: | As Per Screen Size |
| Feeding Mechanism: | Manually Feeding |
| Machine Weight: | 1062kgs (Approx.) |
| Blade Material: | Hardened WPS / HCHCR |
|---|---|
| Body Plate Thickness: | 36mm |
| Bearing: | 6315 |
| Machine Body / Frame: | Painted Mild Steel |
| V Belt: | ‘C’ Section |
| Hopper: | 4mm thick Painted Mild Steel |
| Guard Cover: | 16 swg Mild Steel Sheet Metal Duly Painted |
| Fly Wheel / Pulley: | Cast Iron |
| Fly Wheel Outer Diameter: | 390mm |
| Fly Wheel Thickness: | 101mm |
| Rotor Diameter: | 400mm |
| Motor: | Hindustan |
| Limit Switch: | Avon |
