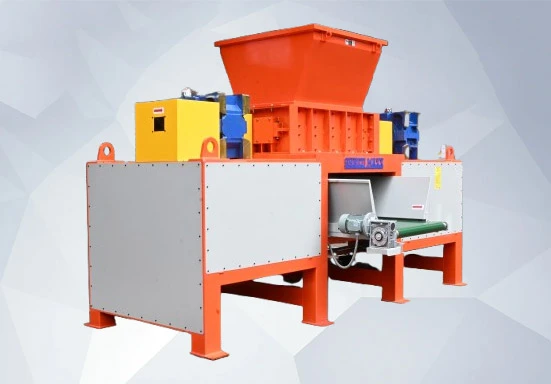

Dual Shaft Shredder — The DS1080 is built for the heaviest and most demanding waste streams — bulky municipal solid waste, mixed industrial scrap, and oversized rejects that overwhelm lighter machines. Twin motor-gearbox drives power two counter-rotating shafts with interlocking cutters, gripping, tearing, and shearing material apart using high torque rather than raw speed, so dense or irregular loads pass through without jamming or needing pre-sorted material. The rotating shafts self-draw material inward, keeping the process steady even under continuous, high-volume municipal operation, while an integrated output conveyor carries shredded material clear of the machine for continuous, hands-free discharge. Built for resilience and throughput over fine precision, ideal for round-the-clock heavy-duty processing.
| Shredder Type | Dual Shaft Cross Cut Shredder |
|---|---|
| Hopper Opening | 1000mm x 1100mm |
| Cutting Head Opening (Feed Opening) | 1000mm x 675mm |
| Machine Height (Feeding Height) | 8 Feet (Approx.) incl. Hopper |
| Machine Weight | 7000 Kg (Approx.) incl. Electrical Control Panel |
| Motor HP/kW | 80.0 HP / 58.84 kW (2 × 40 HP) |
| Voltage | 415 V / 50 Hz / 3 Phase / (3P (Three Phase) + N (Neutral) + E (Earth)) |
| Feeding Mechanism | Manually Feeding |
| Output Mechanism | Conveyor Output (1 HP Motor) |

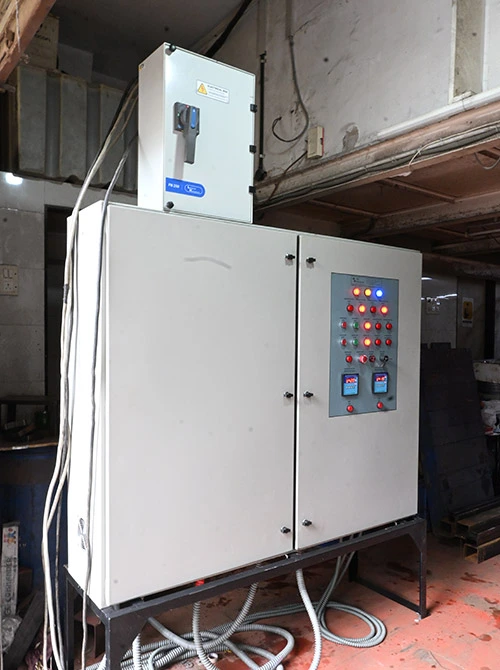

| Electrical Control Panel | Free-Standing, Separate From Machine |
| Cutter Thickness | 24.5mm |
| Shaft | Alloy Steel, 2nos w/ Hex Machining For Firm Grip On Cutters For Zero Slippage |
| Gearbox | From A Reputed Brand As Per Requirement |
| Motor | Hindustan / Siemens / Crompton |
| Scrapper | Mild Steel Duly Machining Done |
| Machine Frame | Heavy Square Tube & Angle Frame Of Mild Steel, Duly Painted |
| Body Panels & Safety Guards | Powder Coated Finish |
